Ideal Uses:
- Tablets, Capsules, Softgels & Gummies
- Ointments, Creams & Gels
- Liquids, Lotions & Suspensions
- Powders & Flower

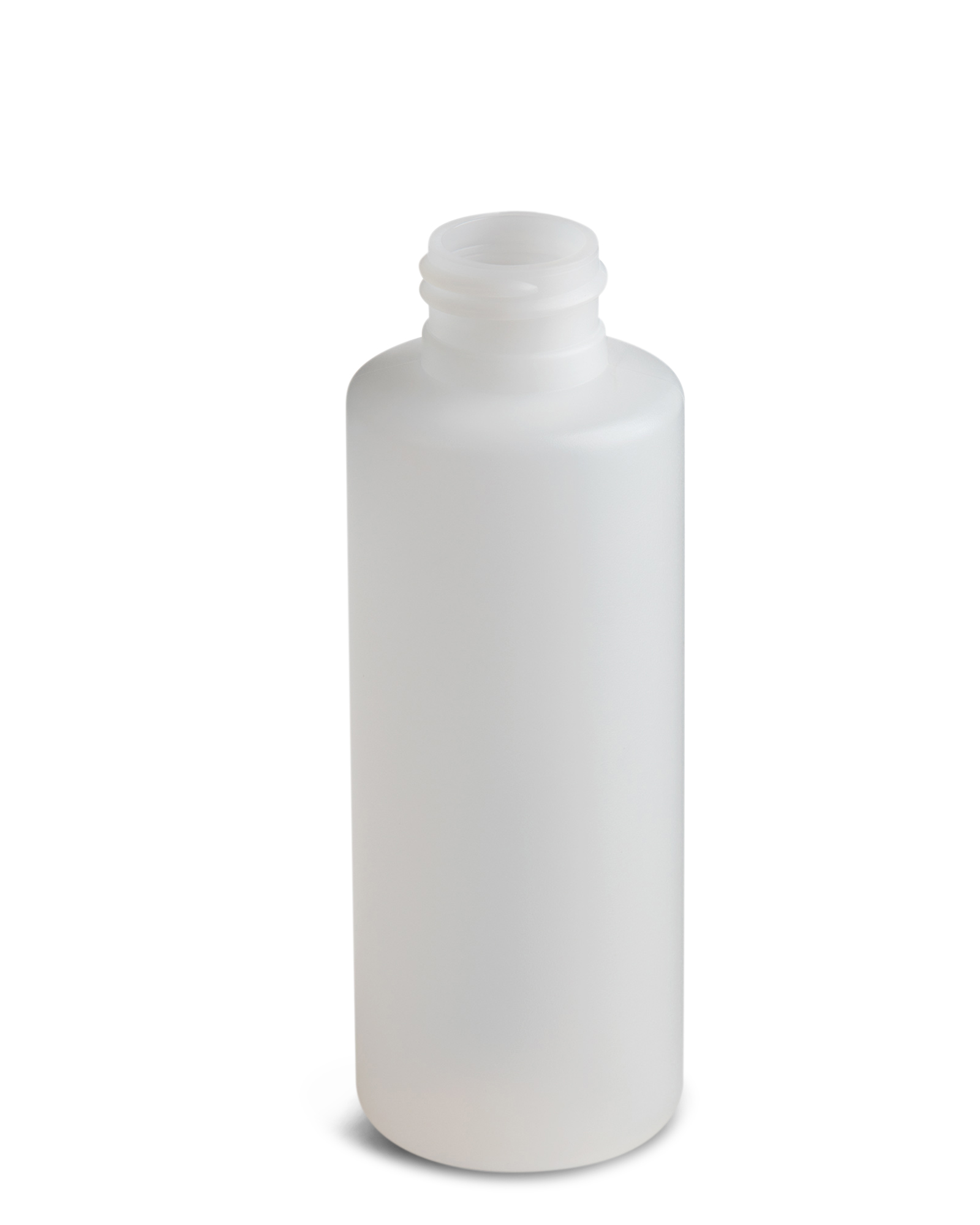

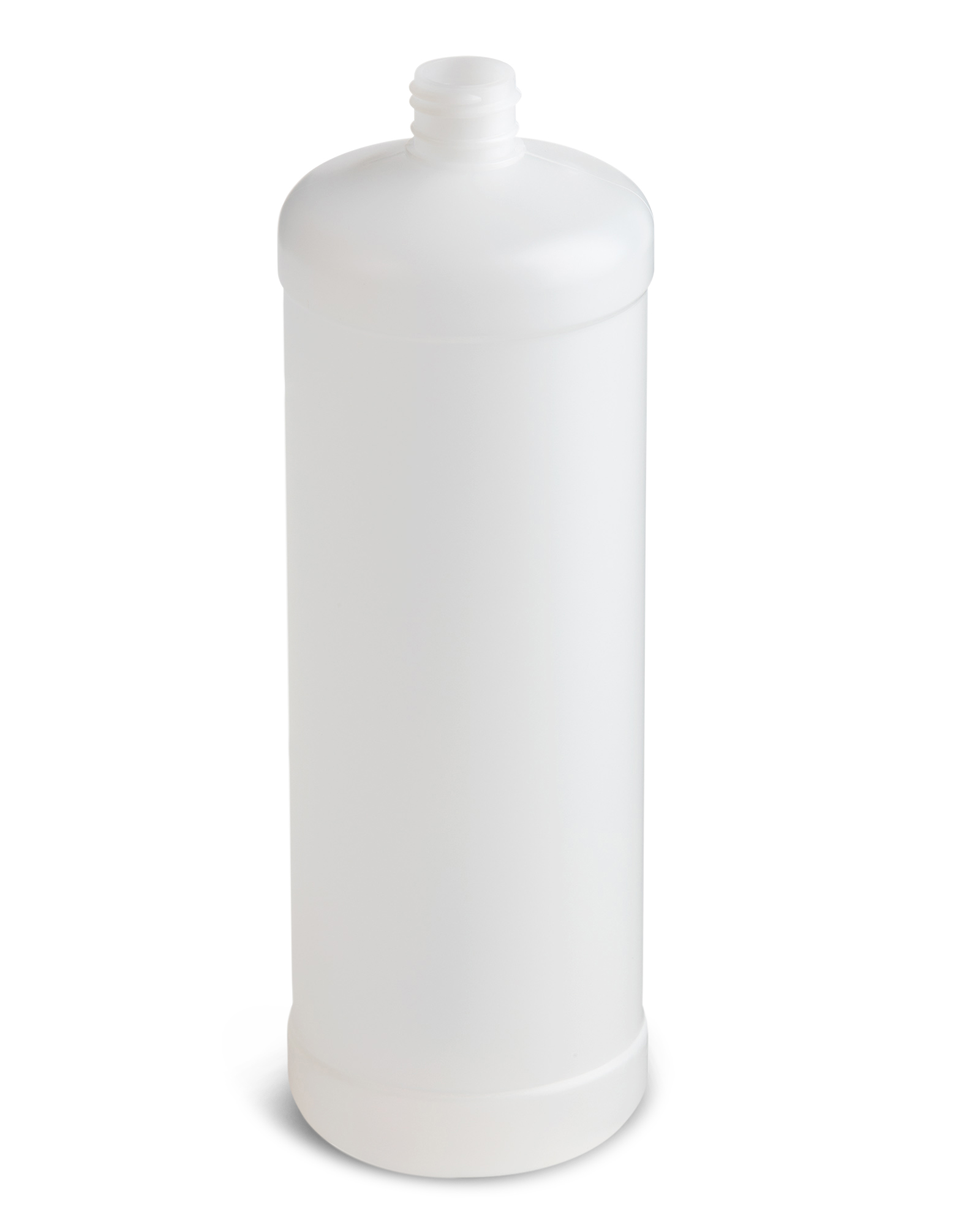

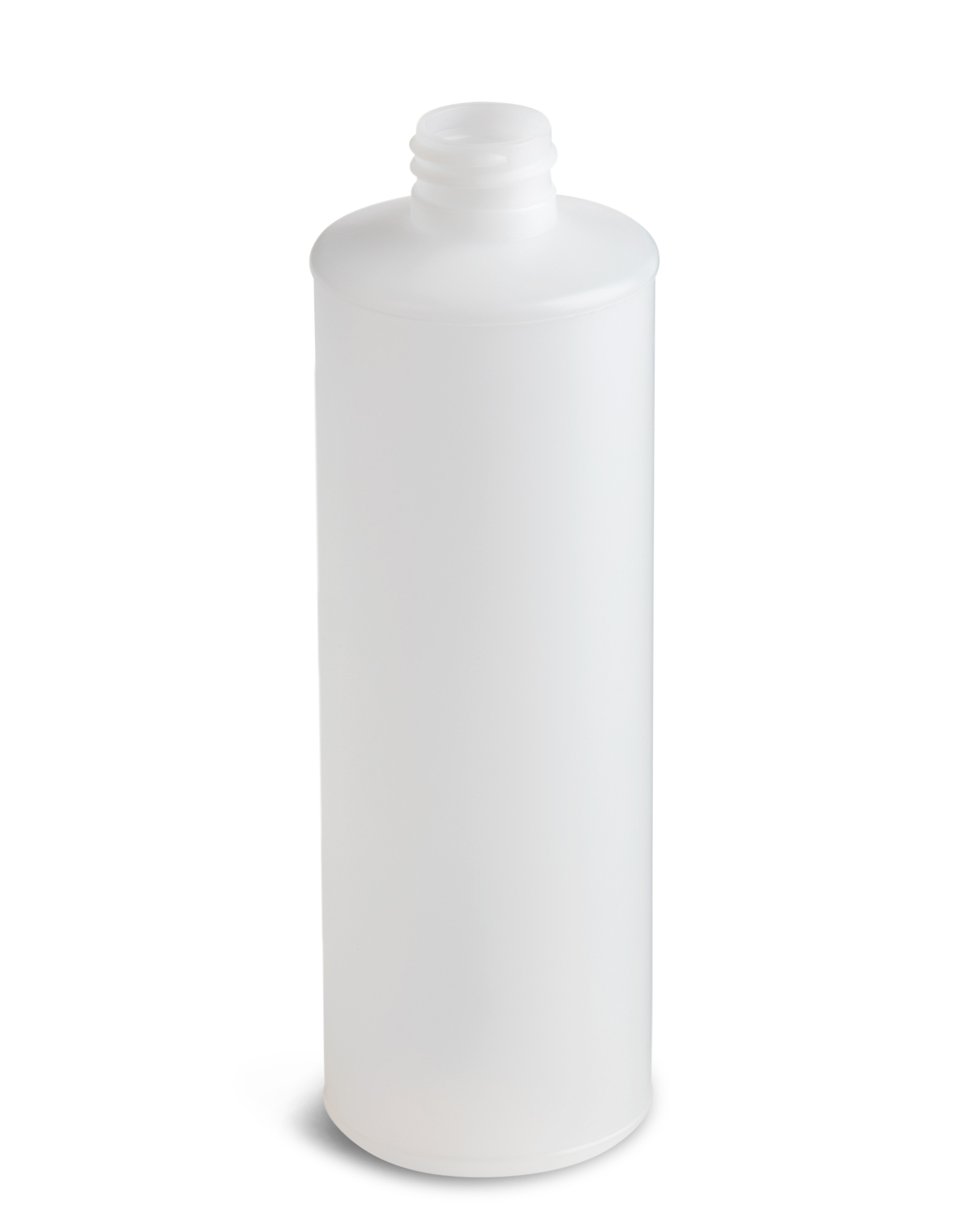

Use our tall and slender Panelled Cylinders to package prescription and over-the-counter suspensions, liquid supplements, and lifestyle lotions because the bottle’s narrow opening dispenses these product types easily. We manufacture these cylinders with traditional HDPE and they are available in four capacities. Depending on the product application, use our Continuous Thread Closures or our exclusive SecuRx® Child Resistant Closures. Rest assured we make all of our products in the USA from FDA-approved and ASTM-tested raw materials.
7 Items
Filter Your ResultsFilter Your Results
- Capacity 118 ml/cc / 4.0 oz
- Mold # 0316
- Finish 24-410
- Finish Code F2
- Weight 15.0 g / 0.53 oz
- Other Weights No

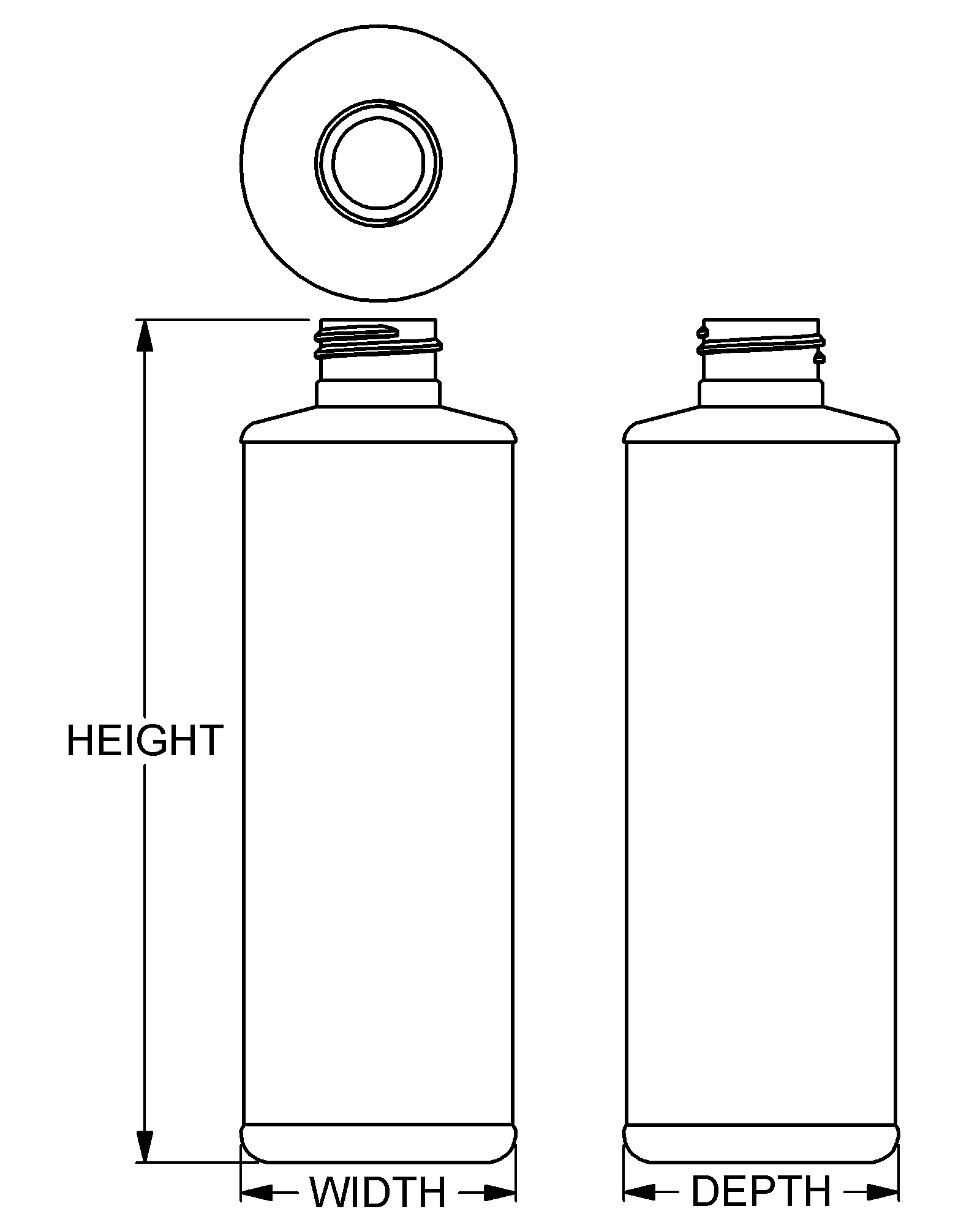

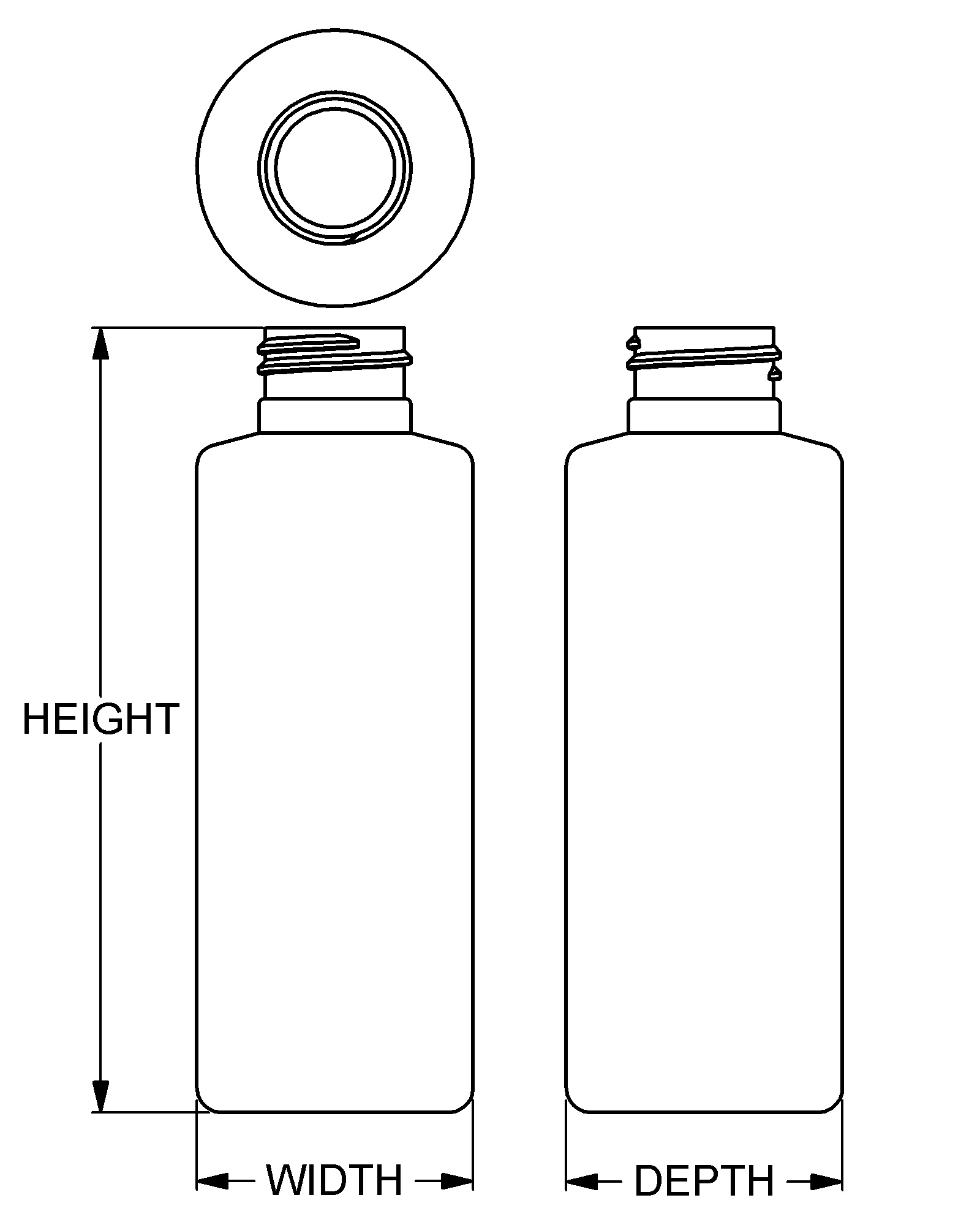

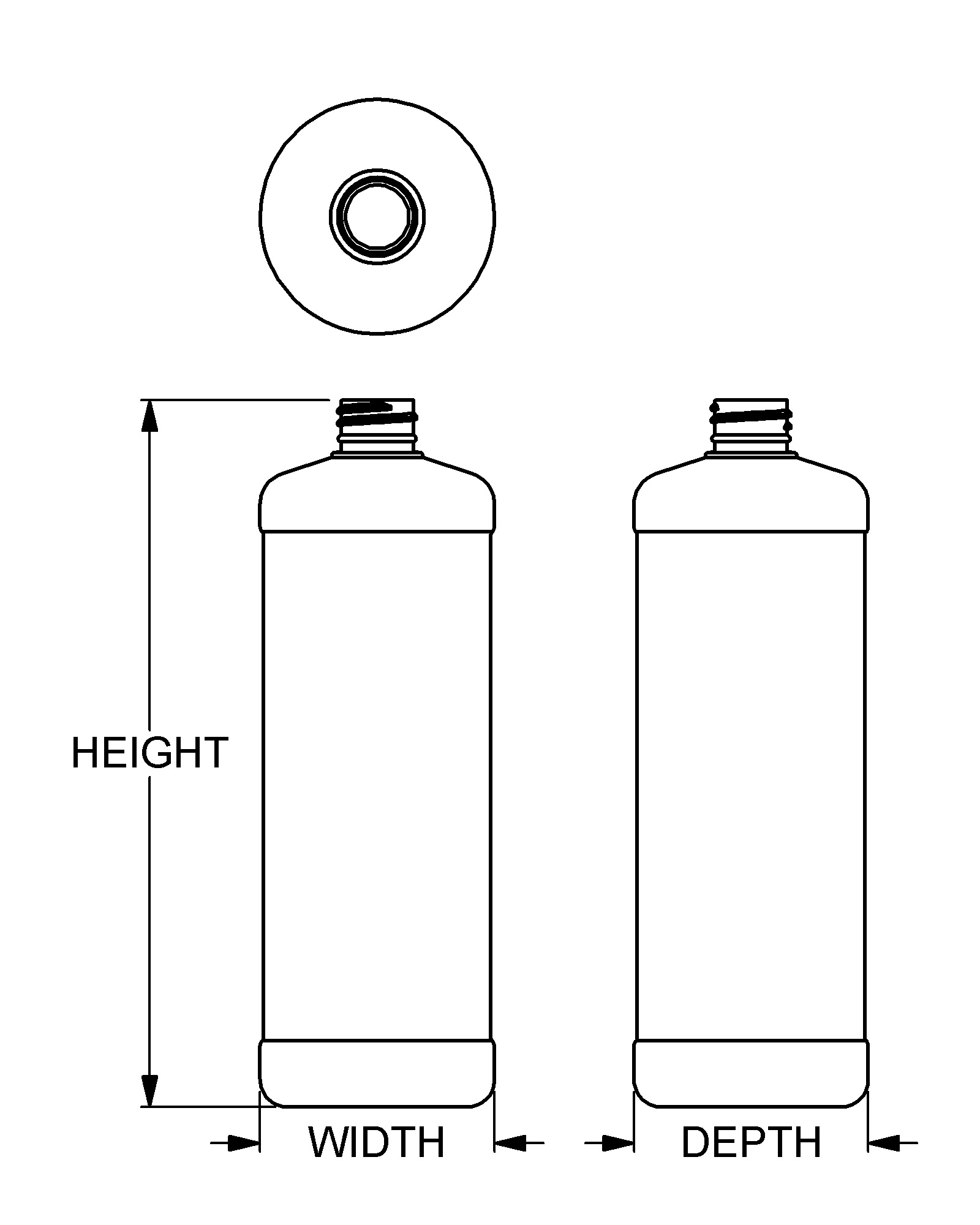

- Height 122.02 mm / 4.804 in
- Width 42.93 mm / 1.690 in
- Depth 42.93 mm / 1.690 in
- Overflow 140 ml/cc / 4.7 oz
- Max. Bead Diameter 23.62 mm / 0.930 in
- Material Options HDPE
- Capacity 237 ml/cc / 8.0 oz
- Mold # 0317
- Finish 24-410
- Finish Code F2
- Weight 24.0 g / 0.85 oz
- Other Weights No
- Height 158.88 mm / 6.255 in
- Width 51.82 mm / 2.040 in
- Depth 51.82 mm / 2.040 in
- Overflow 260 ml/cc / 8.8 oz
- Max. Bead Diameter 23.62 mm / 0.930 in
- Material Options HDPE
- Capacity 237 ml/cc / 8.0 oz
- Mold # 0317
- Finish 28-415
- Finish Code G3
- Weight 24.0 g / 0.85 oz
- Other Weights No
- Height 169.55 mm / 6.675 in
- Width 51.82 mm / 2.040 in
- Depth 51.82 mm / 2.040 in
- Overflow 268 ml/cc / 9.1 oz
- Max. Bead Diameter 27.38 mm / 1.078 in
- Material Options HDPE
- Capacity 473 ml/cc / 16.0 oz
- Mold # 0318
- Finish 24-410
- Finish Code F2
- Weight 34.0 g / 1.20 oz
- Other Weights No
- Height 200.66 mm / 7.900 in
- Width 64.39 mm / 2.535 in
- Depth 64.39 mm / 2.535 in
- Overflow 535 ml/cc / 18.1 oz
- Max. Bead Diameter 23.62 mm / 0.930 in
- Material Options HDPE
- Capacity 473 ml/cc / 16.0 oz
- Mold # 0318
- Finish 28-410
- Finish Code G2
- Weight 34.0 g / 1.20 oz
- Other Weights No
- Height 200.66 mm / 7.900 in
- Width 64.39 mm / 2.535 in
- Depth 64.39 mm / 2.535 in
- Overflow 537 ml/cc / 18.2 oz
- Max. Bead Diameter 27.38 mm / 1.078 in
- Material Options HDPE

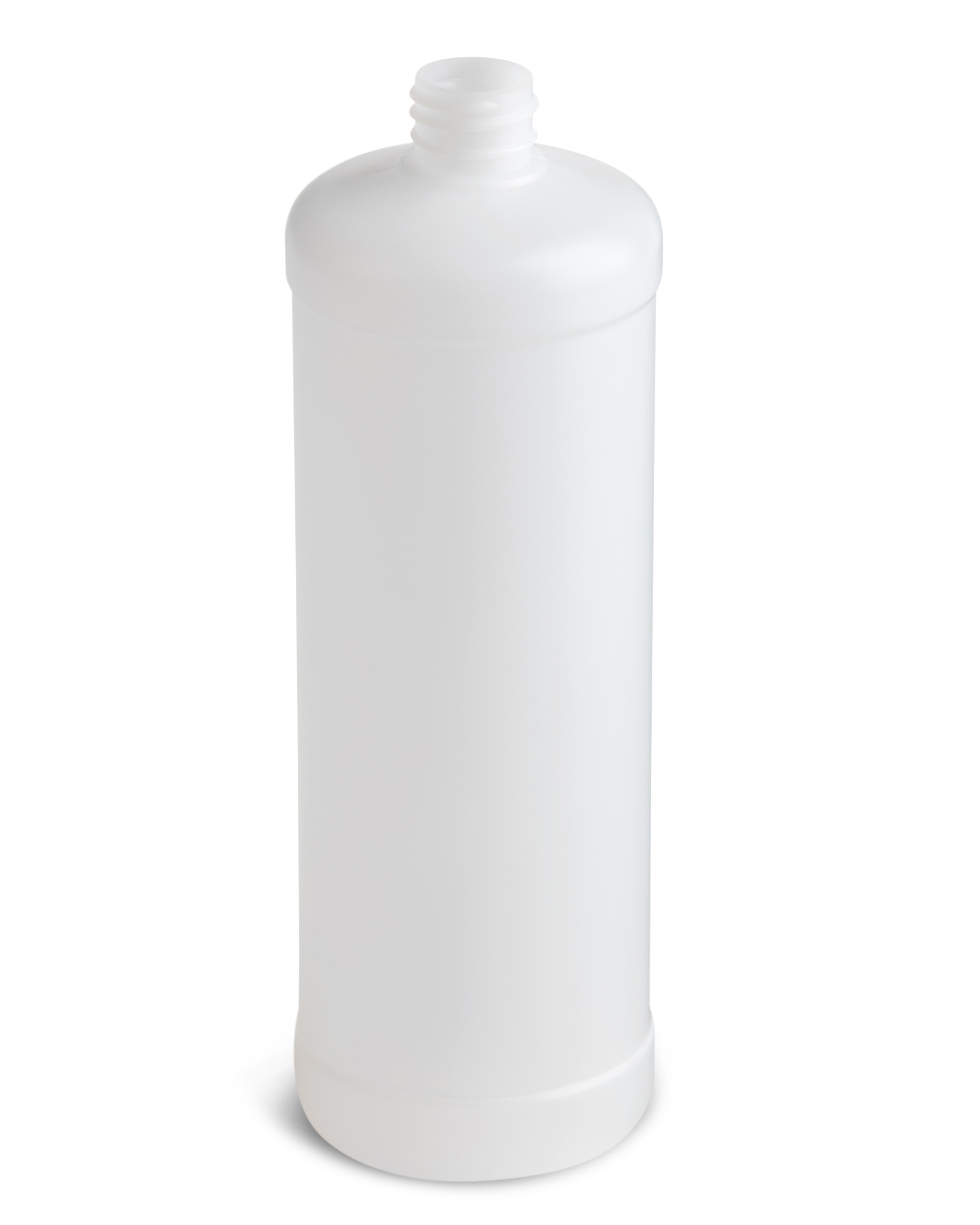

- Capacity 946 ml/cc / 32.0 oz
- Mold # 0319
- Finish 24-410
- Finish Code F2
- Weight 54.0 g / 1.90 oz
- Other Weights No
- Height 244.35 mm / 9.620 in
- Width 80.90 mm / 3.185 in
- Depth 80.90 mm / 3.185 in
- Overflow 1015 ml/cc / 34.3 oz
- Max. Bead Diameter 23.62 mm / 0.930 in
- Material Options HDPE
- Capacity 946 ml/cc / 32.0 oz
- Mold # 0319
- Finish 28-410
- Finish Code G2
- Weight 54.0 g / 1.90 oz
- Other Weights No
- Height 244.35 mm / 9.620 in
- Width 80.90 mm / 3.185 in
- Depth 80.90 mm / 3.185 in
- Overflow 1015 ml/cc / 34.3 oz
- Max. Bead Diameter 27.38 mm / 1.078 in
- Material Options HDPE
